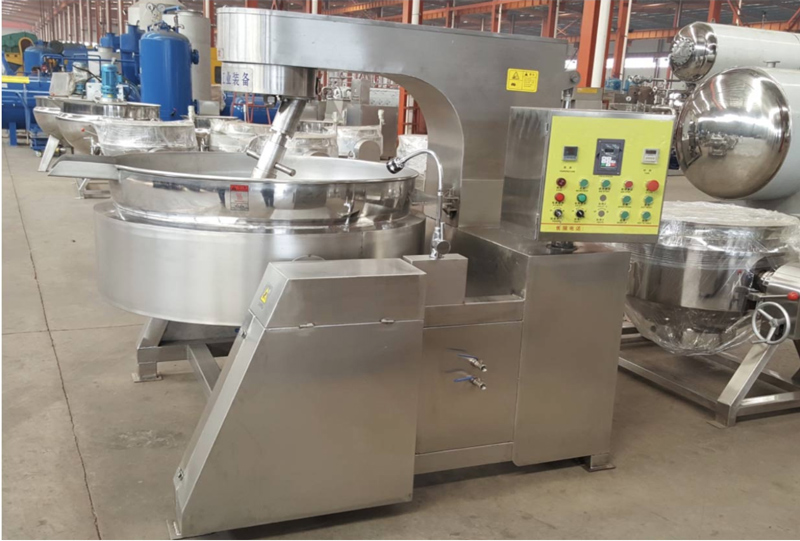

Steam Atuo Cooking Mixer

Tilting Steam Heating Cooking Mixer (Agitator)

 Product Description

Our steam cooking mixer are made of food grade stainless steel 304 both inside and outside and have smooth and shiny appearance. It can be manually tilted by using a handle on the side or tilted automatically making it easier and safer to pour the contents inside the pot.

Generally steam cooking mixer is equipped with pressure gauge, temperature sensor, steam inlet, steam outlet, steam trap and safety valve.

The steam cooking mixer is widely adopted in various food processing industries, such as sugar, sauce, curry, dishes, beverage, liquor, dairy, cake, chemical and medicine, etc., also can be used in large restaurants and canteens for boiling, cooking, frying and stewing large quantities of food.

 Product Features

The Cooking mixer has the following features:

1. Easy to install and operate;

2. Uniform Heating;

3. Large heating area;

4. Short boiling time;

5. Easy control of heating temperature;

6. Mixing scrapers can touch the bowl thoroughly avoids burning;

7. Stirring speed is adjustable;

8. Corrosion & abrasion resistance;

9. Longer service life;

 Classification of Jacketed Kettle

By heating method:

1. Electric heating type;

2. Steam heating type;

3. Gas heating type;

By configuration of the cooking mixer:

1. Tilting type/vertical type;

2. With agitator/without agitator;

3. Ordinary stirring type/planetary stirring type;

4. With lid/ without lid;

5. Full automatic type /semi-automatic type;

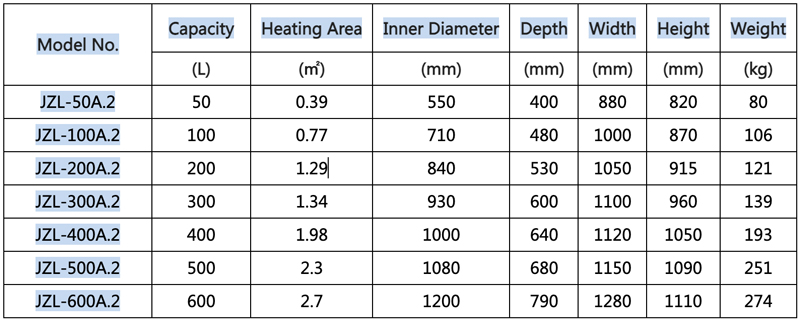

Technical Parameters for reference
