Product description
Scope of application
①Tin can, alum can, packed food
②All kinds of soft pack food, including alum foil bag, transparent bag, vacuum bag, high temperature cooking bag, etc
overview

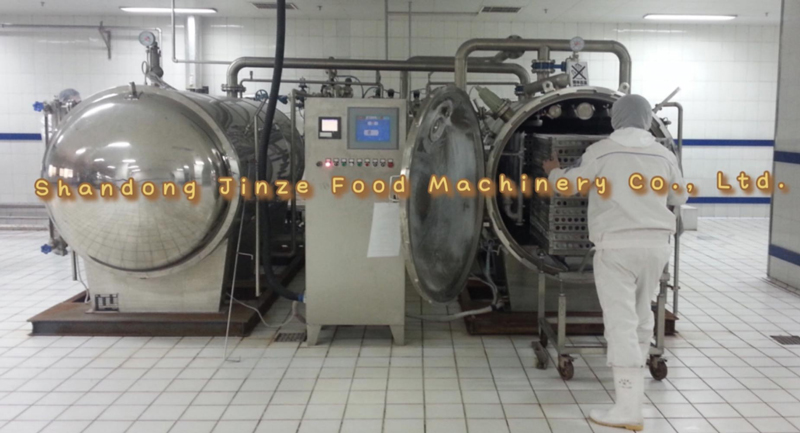

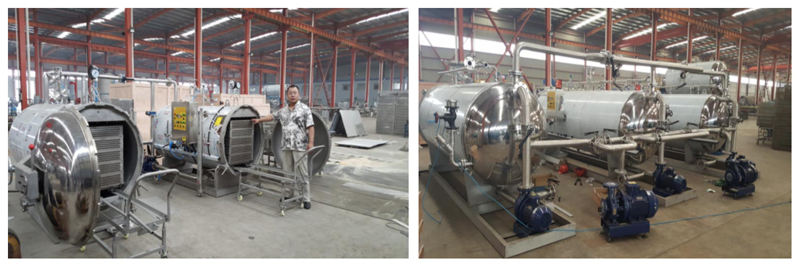

The device is composed of two Cauldron water sterilization pots in parallel connection. Two pots work in turns by exchanging same sterilization water, namely once the food sterilization in one pot finished high temperature process water goes to the 2nd pot directly to reduce process water & heat loss. Efficiency is improved and output is increased.
Features
◆ Fully Utilize Hot Water Source and Reduce Loss, Improve Efficiency, Increase Output
Specification
| ITEM | JZL1000 SERIES | JZL1200 SERIES | |||
| 1 | 1 | 2 | 3 | 4 | |
| Inner (mm) | 1000 | 1200 | 1200 | 1200 | 1200 |
| Drum（mm） | 2200 | 2400 | 2700 | 3000 | 3600 |
| Overall length(mm) | 4100 | 4200 | 4500 | 4800 | 5400 |
| Overall width(mm) | 3400 | 4400 | 4400 | 4400 | 4400 |
| Overall height（mm） | 2200 | 2300 | 2300 | 2300 | 2300 |
| Total volume(m³) | 1.8X2 | 3X2 | 3.6X2 | 4X2 | 4.6X2 |
| Steam consumption (kg/bathch) | 220 | 340 | 400 | 460 | 500 |
| Power (KW) | 12 | 24 | 24 | 24 | 24 |
| Max work temperature | 145℃ | ||||
| Test pressure | 0.44Mpa | ||||
| Design pressure | 0.35Mpa | ||||
